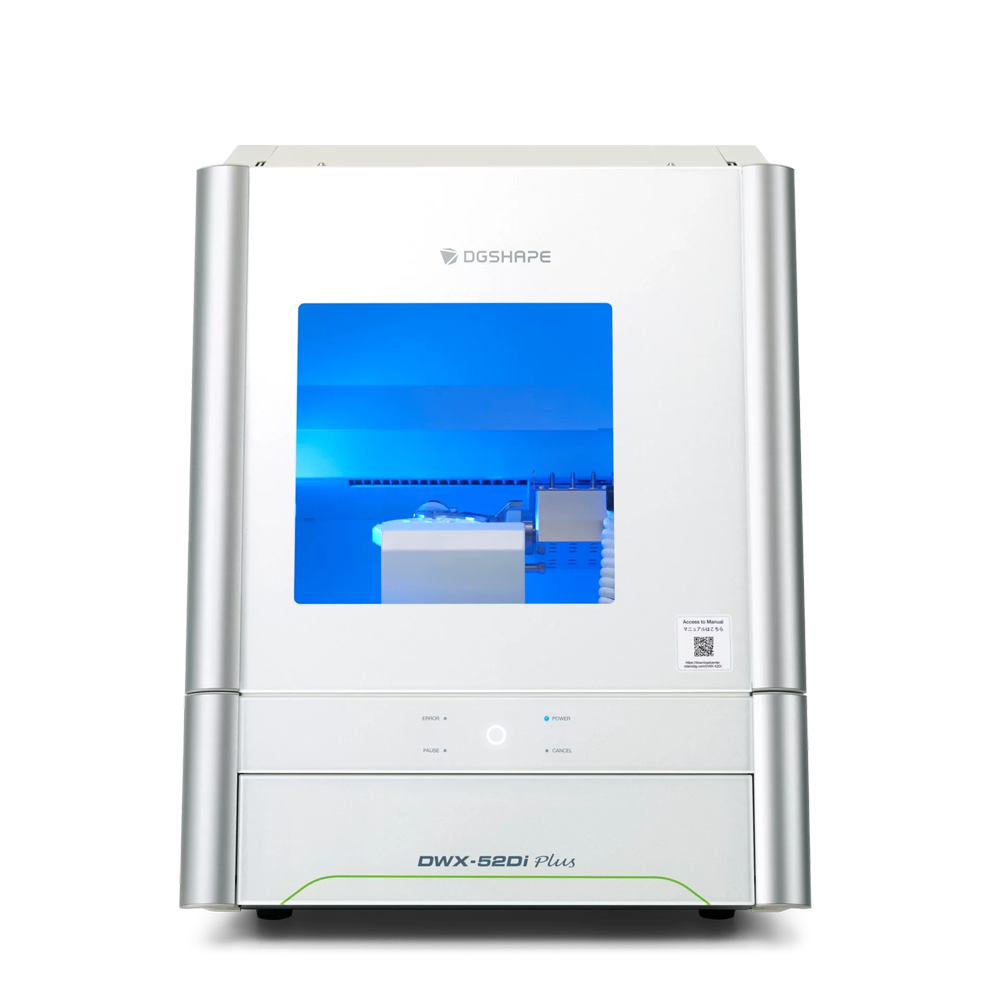

DGShape DWX-52D Plus 5-Axis Dental Milling Machine
39 people are viewing this product right now
Shipping calculated at checkout.
৳ 2,100,000.00
🔥 Buy More Save More!
Buy 3 items get 5% OFF
on each productBuy 6 items get 10% OFF
on each productBuy 10 items get 15% OFF
on each product
Estimated delivery:3 days
The DWX-52D Plus is a professional-grade 5-axis dry dental milling machine for dental laboratories and clinics that produces high-precision restorations such as crowns, bridges, inlays/onlays, veneers, implant bars, surgical guides, and more. It is created by DGSHAPE (a Roland subsidiary) and is an upgraded version of the popular DWX-52D series with better performance and workflow capabilities.
echnical features
| Cuttable material | Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Glass fiber reinforced resin, Chrome Cobalt sintered metal | |
| Loadable workpiece shape | External Diameter | 98.5 mm |
| Max Height | 60 mm | |
| Step | 10 mm | |
| Pin Type Diameter | 6 mm | |
| Loadable workpiece weight | Up to 850 g | |
| Number of adapters housed | 6 | |
| Operating speed | XYZ axis: | 6 to 1,800 mm/min. (0.24 to 70.9 in./min.) |
| Spindle motor | Brushless DC Motor | |
| Spindle speed | 6,000 to 30,000 rpm | |
| Rotary axis travel angle | A axis | ±360° |
| B axis | ±30° | |
| Number of burs housed | 15 | |
| Attachable bur | Shank diameter | 4 mm |
| Length | 40-55 mm | |
| Compatible compressed air | 0.05/0.2 MPa (Automatic switch) | |
| Interface | USB | |
| Control command set | RML-1, NC code | |
| Power requirements | AC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC60664-1) | |
| Power consumption | Approximately 200 W | |
| Operating noise | During operation | 70 dB(A) or less (when not cutting) |
| During standby | 45 dB(A) or less | |
| External dimensions | Width | 19.5 in (495 mm) |
| Depth | 26.0 in (660 mm) | |
| Height | 23.6 in (600 mm) | |
| Weight | 147.7 lbs. (67 kg) | |
| Installation environment | Altitude | Up to 6,562 ft. (2,000m) |
| Temperature | 41 to 104° F 5 to 40° C | |
| Humidity | 35 to 80% (no condensation) | |
| Ambient pollution degree | 2 (as specified by IEC 60664-1) | |
| Short-term temporary overvoltage | 1,440 V | |
| Long-term temporary overvoltage | 490 V | |
| Included items | Power cord, power plug adapter, USB cable, manuals, Roland DG software package CD, detection pin, automatic correction jig, pin-type material adapter, hexagonal driver, spanner, milling bur holders, milling bur positioner, dust collection hoses, dust collection hose adapter, regulator, cleaning tool, option adapter labels, material adapters, material adapter rack | |
| Operating system | Windows® 7/8/8.1/10 (32 or 64 bit) | |
| USB cable | Use the included USB cable | |
